Innokin ITaste 134 MINI (Black) Includes 1 x IClear X1 & Case

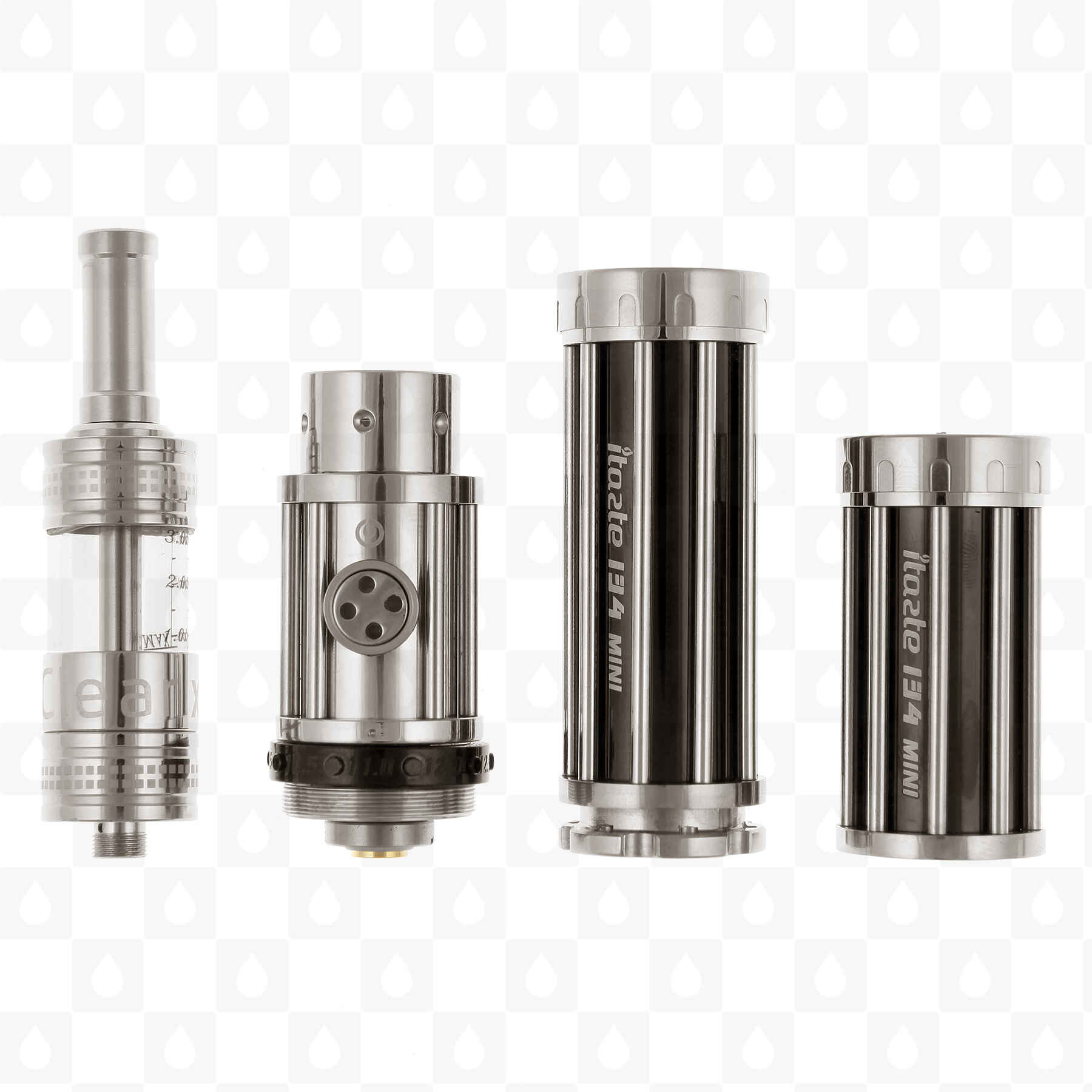

In The Box

1. 1 x Innokin Itaste 134 Mini (Black).
2. 1 x 18350 Battery Sleeve.
3. 1 x 18500 Battery Sleeve.

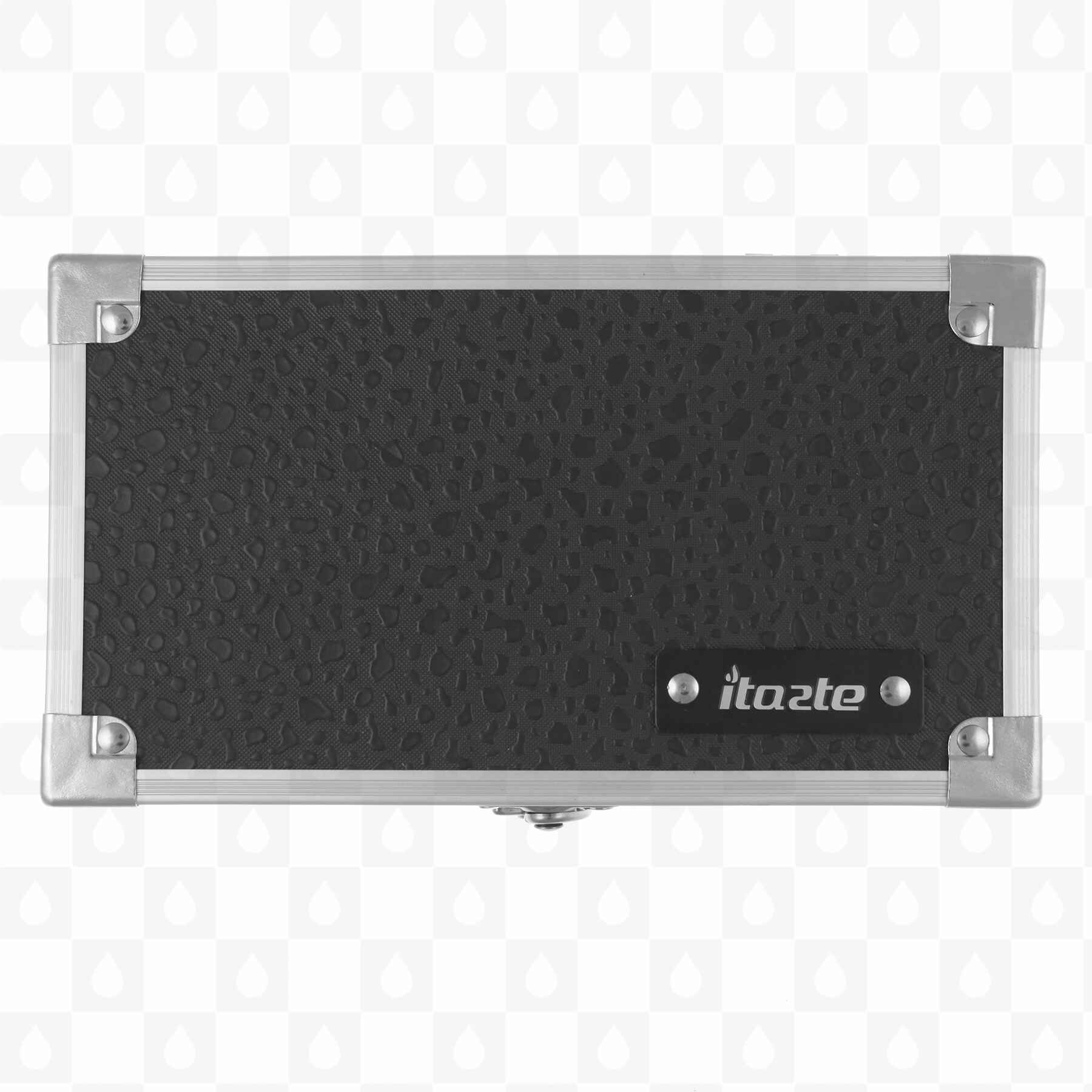

4. 1 x Carry / Flight Case.
5. 1 x IClear X1 Bottom Dual Coil with Pyrex Glass Tank.

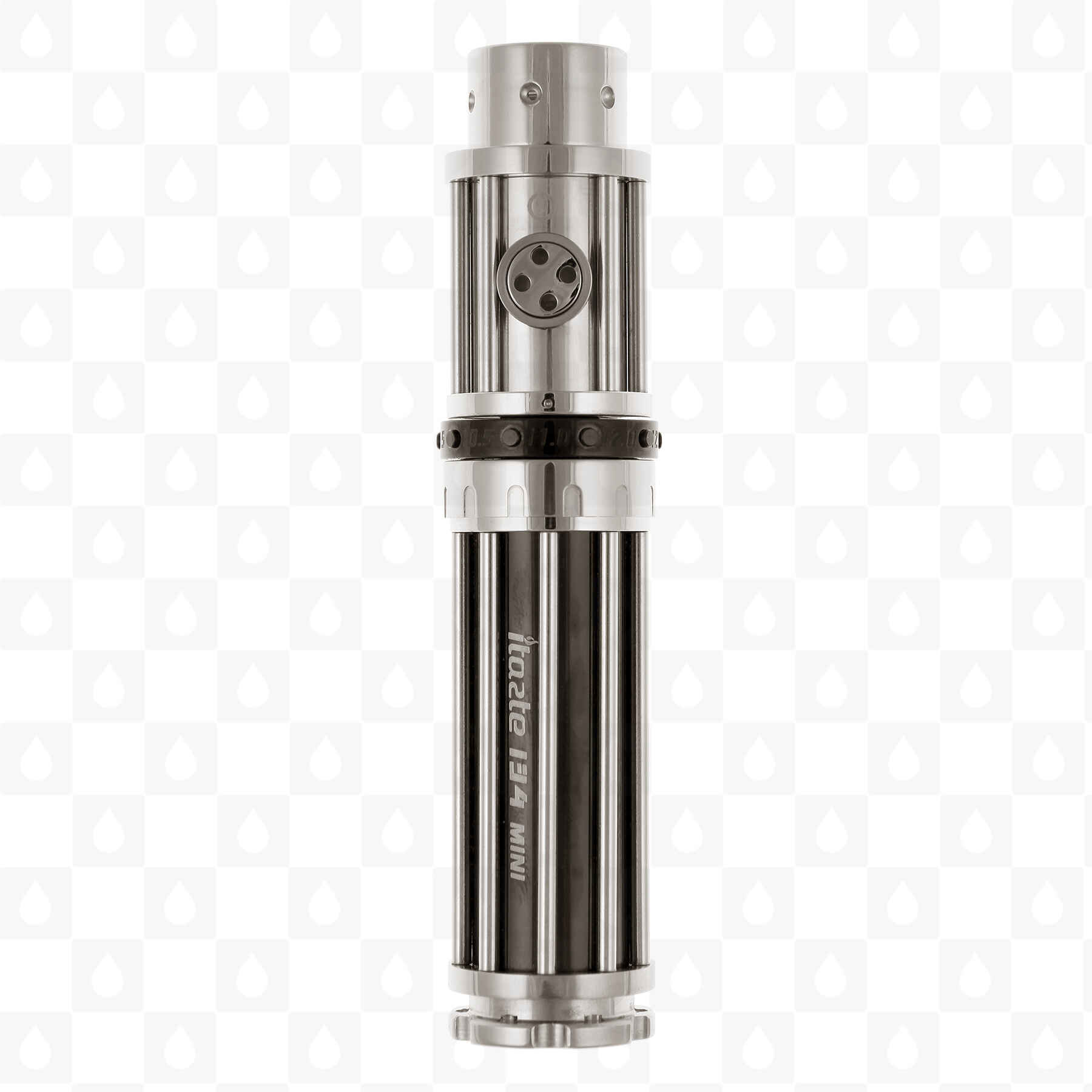

Using The Device

The Innokin ITaste 134 Mini is the more conservatively sized version of its bigger brother, It is a microprocessor-controlled Variable Wattage only E-cig Mod, still retaining the looks and features just in a smaller, more regular size, coming in black or polished stainless steel, Still very complex in its build and appearance which looks like its taken its style and model number from the M134 Machine gun, The Itaste 134 Mini is probably one of the simplest mods to operate, With just two controls to master, a firing button (rapid click 3 times to turn the device on or off) and a rotational variable wattage control wheel (marked out with 8 settings - 6.5W, 7W, 8W, 9W, 10W, 11W, 12W, & 12.5W) If you have not correctly clicked into one of the wattage settings and you press the firing button it will flash red 6 times, that said the dial has a very positive click for each of the wattage settings so you should not have a problem with this, there is an illuminated battery life indicator built into the firing button (Green = Fully charged, Yellow = Half discharged, Red = Low battery)

Output

It has a maximum output voltage of 6.0V, Maximum Output current of 5.0A with a built in fuse at 7.0A for safety, The manufacturers minimum recommended resistance of the coil is 1.2 Ohm, The short circuit protection will kick in at about 0.6 Ohm +/- 0.2 Ohm

Construction

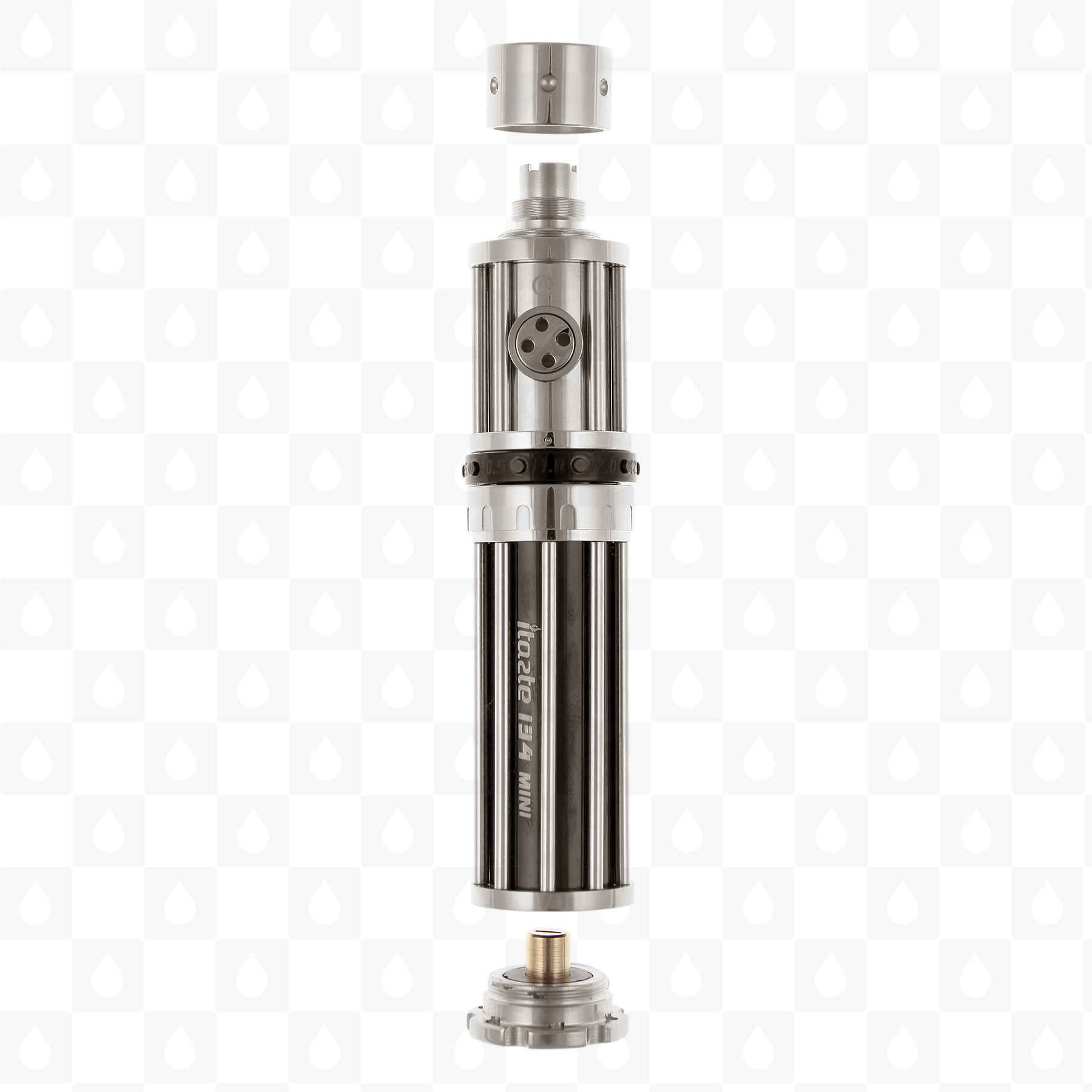

Still a hefty and solid construction as with its bigger brother made with a generous amount of stainless steel and good quality threading to the removable parts (top cap, battery sleeve and battery cap) There are a total of 24 Visible screws locking this device together, It is weighing in at:
156 Grams (around 5.5 Ounces) with the 18350 battery sleeve attached and measuring 106mm x 25mm.
165 Grams (around 5.8 Ounces) with the 18500 battery sleeve attached and measuring 120mm x 25mm.
Its still a real conversation piece just a bit lighter and more discreet than the full sized beast.

The Display

There is no LCD display on the Itaste134, it gives you the battery condition through the illumination holes in the firing button, Green – Yellow – Red (is Dead)

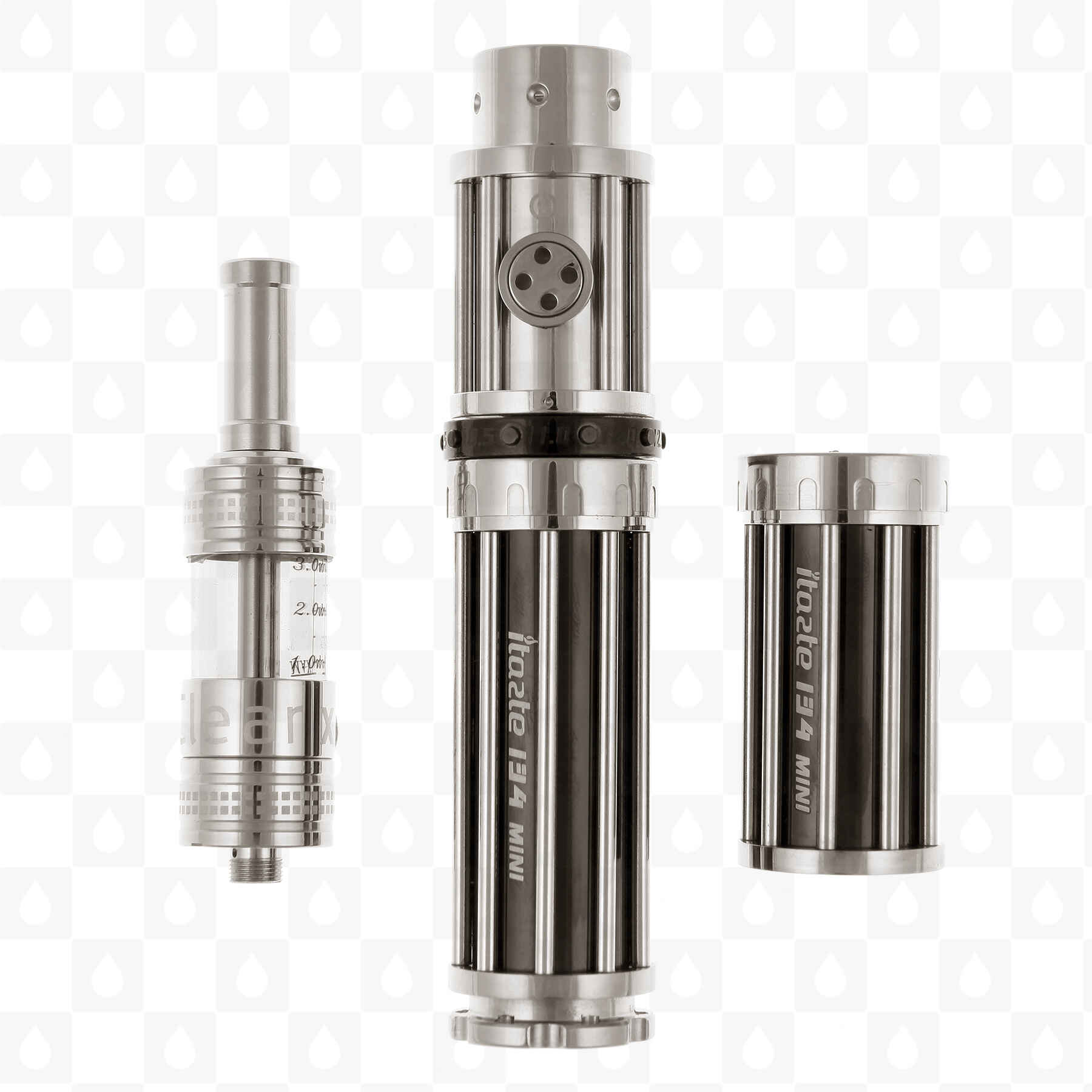

Battery Compatibility

Depending on which battery sleeve you fit to it the Innokin ITaste 134 takes 1 x 18350 or 1 x 18500, It is not able to run on 2 x 18350 batteries stacked, It has built in short circuit, reverse polarity protection & a 10 second cut off incase it is firing in your pocket / bag.

Battery Safety Please Read

IMPORTANT INFORMATION

By purchasing any batteries, devices, mods or kits that include batteries you are agreeing that you understand and agree with the following advice and that RedJuice (UK) cannot be held responsible for any damages arising from improper use or by not following the guidelines.

The Lithium batteries used in e-cig devices and mods need to and can output exceedingly high currents and can empty themselves VERY fast in a short circuit, with some cells this may result in overheating, rupture of the cell and possibly even explosion, always discard a damaged or suspect device or battery unless a competent engineer can repair or give it the all clear to use.

Guidelines

1. NEVER leave batteries unattended when charging especially overnight while sleeping.
2. NEVER keep batteries loose in your pocket or bag where they could short circuit and cause a dangerous or explosive event. Use a suitable case or plastic battery holder.
3. NEVER place the charger on flammable surfaces when charging. (carpets, fabrics etc)
4. Don't heat, incinerate or reverse the polarity, always check polarity when charging or inserting into the device.
5. Do not over-charge or over-discharge. Remove from charge as soon as you get the green light or fully charged indication, check the instructions if unsure.
6. Use only the correct charger for the batteries, if you are uncertain check.
7. Only use recommended batteries and do not purchase or use cheap alternatives.
8. Discard a battery if it fails to keep a charge or looks damaged in any way.
9. Do not over-tighten atomisers / tanks onto the device, you only need to tighten until contact is made.
10. When charging batteries via USB do not over-tighten them in the charging lead.
11. Please dispose of batteries safely and according to the regulations.

E-Juice / E-Cigarette Safety Please Read

By purchasing any items from RedJuice (UK) you are agreeing that you understand and agree with the following advice and that RedJuice (UK) cannot be held responsible for any damages or health issues arising from improper use or by not seeking or following the guidelines or advice from medical professionals.

We make no claims that using an E-Cigarette will help you in giving up smoking cigarettes nor that there are any health benefits from giving up smoking cigarettes and using an electronic cigarette or device (simply put there is not enough evidence currently to support the idea) you need to make that decision for yourself. If you are unsure about the health risks or benefits involved in the switch or its suitability for you due to any conditions that you may have or you need help with nicotine dependency we recommend seeing a qualified medical practitioner for the correct advise.

Keep all devices, batteries and fluid totally out of reach of children, Nicotine in its pure form is a known poison and can cause serious harm. The levels of nicotine contained in E-Liquids if ingested (certainly by a small child) could cause serious harm and medical assistance should be sought immediately if suspected (taking the packaging with you to show the medical practitioner)

Age Restrictions

You must be eighteen (18) years of age, and possess a valid credit card to purchase any of our products. We absolutely reserve the right to cancel any sale based on our sole discretion where we reasonably believe or suspect the purchaser is purchasing products on behalf of a minor or is under the age of 18.

A note on clones (The Cheaper Ones)

Buyers should beware of the many sellers of fakes and clones of devices and tanks made by Innokin, they will not have been through the same strict quality control or design process and may contain sub-standard materials, Innokins devices have been targeted hard but you can be assured as an authorised UK dealer we will only ever offer you genuine products that come directly from Innokin themselves.
